Windsquare Ceiling Fan

Windsquare Ceiling Fan

  • 360 degree grill rotation provides maximum cooling and
    even circulation of air, rotates clockwise and counter-clockwise.
  • Constructed from durable materials for long-lasting,
    dependable and quiet performance.

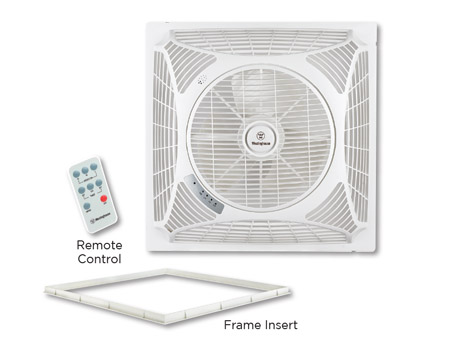

  • Remote control*, wall holder, and LED display
    on fan for easy operation
  • Programmable timer with 3 options:
         - 2 hour, 4 hour, or 6 hour settings
  • Optional frame insert included to accommodate
    larger suspended drop ceiling grids.

*Requires one CR2025 battery (not included)

SPEC SHEET

Item
No.
Size Finish Blade
Finish
Motor
Size
Dimensions Extends from
Ceiling Dimension
Mount
Type
Blade
Pitch
Material Wattage
(H/M/L)
Voltage Lead Wire
Length
72060 36 cm White White 78x74x25 mm
22 cm H x 62 cm W x 62 cm D
10,1 cm
Inside Suspended
Ceiling
13 Plastic 52/44/39 230V/50Hz 12 cm
RPM
(H/M/L)
Maximum Fan Flow Rate
(m3/Min)
Airflow Efficiency
(m3/Min)W
Noise Level
dB(A)
Standby Power
Consumption (W)
Seasonal Electricity
Consumption (kWh/a)
Maximum Air Velocity
(meters/sec)
1250/1130/920 99 2 62 0,38 17,14 3,28
